Introduction
When developing FFA TITAN 2.0, our managed cloud-native data platform, we made a strategic decision to shift from Azure Synapse to Azure Databricks. One of the core features for our clients is the ability to perform SQL-based data analysis. That's why FFA TITAN 2.0 has Databricks Serverless SQL Compute enabled by default.
Our platform is ISO27001 certified. That means we have strict security requirements. All data in motion must remain within the Azure network and not traverse the public internet. To achieve this, we configured Azure Databricks with VNet Injection and deployed other platform components in a similar fashion. Shielding them from public access.
However, deploying Databricks Serverless SQL Compute and enabling it to connect to other FFA TITAN platform resources in the platform's vnet required extra steps. In this blog, we'll walk you through how we automated this process.
Databricks network overview
Azure Databricks operates out of a control plane and a compute plane. The latter comprises of Classic compute workloads and Serverless workloads.
In this blog our goal is to secure and privately connect the serverless compute plane and our resources.

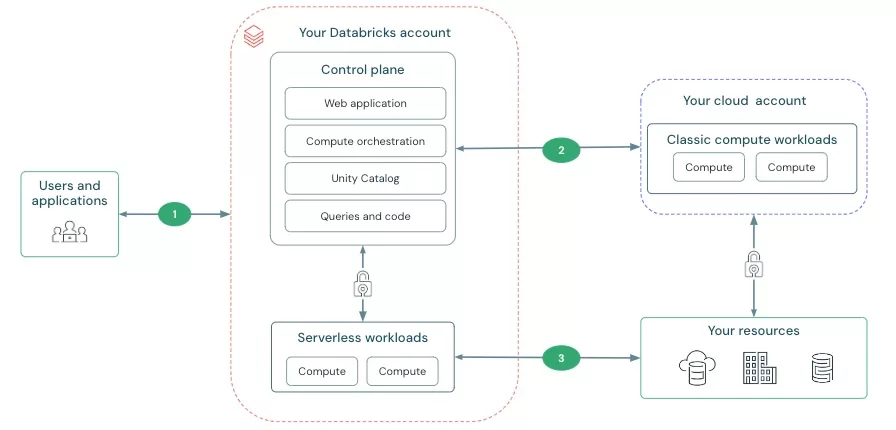

Three distinct network flows
[1] Users and application to Azure Databricks network flow
[2] The control plane and classic compute plane network flow

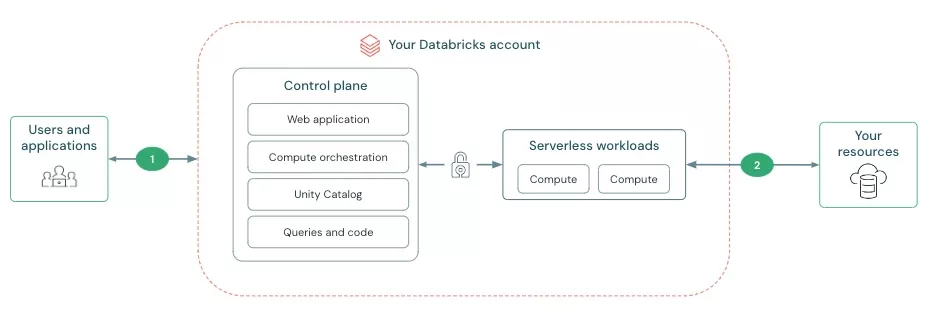

[3] The serverless compute plane network flow
This is the flow we secure and privately connect in this blog.
Concepts
Databricks Serverless SQL Compute is a fully managed service that allows users to execute SQL queries without the need to manually manage clusters. It's optimized for interactive SQL workloads and scales automatically based on demand.
VNet Injection allows you to securely deploy Databricks in an Azure Virtual Network (VNet). This ensures that all traffic between Databricks and other Azure services, like storage accounts or databases in the same vnet, go through the Azure backbone. This avoids exposure to the public internet.
Challenge
In classic compute workloads, Databricks clusters run within your own cloud account using VNet Injection. This allows you to securely access Azure resources like Data Lake or SQL Databases via private endpoints.
However, Serverless SQL Compute operates in a Databricks-managed VNet, which means it doesn't have built-in access to your private resources out-of-the-box. This limitation required us to configure a private network connection to ensure secure access to our platform's resources.
Solution
Fortunately, Azure Databricks uses a similar network setup as Azure Data Factory, which allows the use of managed private endpoints. These endpoints create a secure connection between the Serverless SQL Compute managed network and other resources within your Azure environment.
Using Terraform we were able to automate the process of setting up Databricks Network Connectivity Configuration (NCC), establishing and auto-approving the required managed private connections, and binding our workspace.
Architecture note
Terraforming secure connectivity
We want Databricks Serverless SQL Compute to securely and privately connect to our azure data lake gen 2 storage account. Enabling it to perform queries on external tables in Unity catalog.
| # | Platform component | Location | Public access |
|---|---|---|---|
| 1 | FFA Titan azure data lake storage gen 2 account | FFA Titan Azure VNET | Disabled |
| 2 | Databricks Serveless SQL Compute | Databricks Managed VNET | Disabled |
| # | IaC goal | Language |
|---|---|---|
| 1 | Create Databricks NCC in Databricks account | terraform |
| 2 | Create blob-private-endpoint in [1] | terraform |
| 3 | Create dfs-private-endpoint in [2] | terraform |
| 4 | Associate Databricks NCC with Databricks workspace instance | terraform |
| 5 | auto-approve managed private endpoint on platform-component 'FFA Titan azure data lake storage gen 2 account' | terraform / powershell |
Implementation
This step creates an NCC that governs private endpoint creation and firewall enablement.
resource "databricks_mws_network_connectivity_config" "ffa_titan_ncc" {
provider = databricks.accounts
name = "your-databricks-ncc"
region = var.location
}This creates a private endpoint rule for blob storage on our Azure Data Lake.
resource "databricks_mws_ncc_private_endpoint_rule" "ffa_titan_ncc_per_blob" {
provider = databricks.accounts
network_connectivity_config_id = databricks_mws_network_connectivity_config.ffa_titan_ncc.network_connectivity_config_id
resource_id = azurerm_storage_account.ffa_titan_adls_gen2.id
group_id = "blob"
}This creates a private endpoint rule for DFS on our Azure Data Lake.
resource "databricks_mws_ncc_private_endpoint_rule" "ffa_titan_ncc_per_dfs" {
provider = databricks.accounts
network_connectivity_config_id = databricks_mws_network_connectivity_config.ffa_titan_ncc.network_connectivity_config_id
resource_id = azurerm_storage_account.ffa_titan_adls_gen2.id
group_id = "dfs"
}Link the NCC to our Databricks Workspace to enforce private connectivity.
resource "databricks_mws_ncc_binding" "ffa_titan_ncc_binding" {
provider = databricks.accounts
network_connectivity_config_id = databricks_mws_network_connectivity_config.ffa_titan_ncc.network_connectivity_config_id
workspace_id = azurerm_databricks_workspace.ffa_titan_databricks_workspace.workspace_id
}This step ensures the automatic approval of the private endpoint connection.
resource "null_resource" "approve_synapse_dfs_private_endpoint" {
triggers = {
always_run = timestamp()
}
provisioner "local-exec" {
command = ".'.ps1' -azureSubscriptionId '${var.subscription}' -azureResourceGroupName '${var.resourcegroup_name}' -azureResourceId '${azurerm_storage_account.ffa_titan_adls_gen2.id}'"
}
} powershell-script
param (
$azureSubscriptionId,
$azureResourceGroupName,
$azureResourceId
)
$azureTenantId = Get-ChildItem Env:ARM_TENANT_ID
$azurePrincipalAppId = Get-ChildItem Env:ARM_CLIENT_ID
$azurePrincipalSecret = Get-ChildItem Env:ARM_CLIENT_SECRET
# connect to tenant
az login --service-principal -u $azurePrincipalAppId.Value -p $azurePrincipalSecret.Value --tenant $azureTenantId.Value
# select correct azure subscription
az account set --subscription $azureSubscriptionId
# approve pending managed private endpoint
$text = $(az network private-endpoint-connection list -g $azureResourceGroupName --id $azureResourceId)
$json = $text | ConvertFrom-Json
foreach($connection in $json)
{
$id = $connection.id
$status = $connection.properties.privateLinkServiceConnectionState.status
if($status -eq "Pending")
{
Write-Host $id ' is in a pending state'
Write-Host $status
az network private-endpoint-connection approve --id $Connection.Id --description "Approved by FFA Titan Terraform"
}
}Conclusion
By running the Terraform code, we successfully created secure, private connectivity between Databricks Serverless SQL Compute and our Azure Data Lake Gen 2 account.
We are now able to run SQL-queries against external tables in the Unity Catalog of which their data files sit in FFA Titan's storage-component in the FFA Titan vnet.
This setup enables us to run SQL queries on external tables in Unity Catalog, with data files stored in FFA Titan's VNet. Automating this process with Terraform ensures that our platform remains ISO27001 compliant while leveraging a fully managed SQL environment.

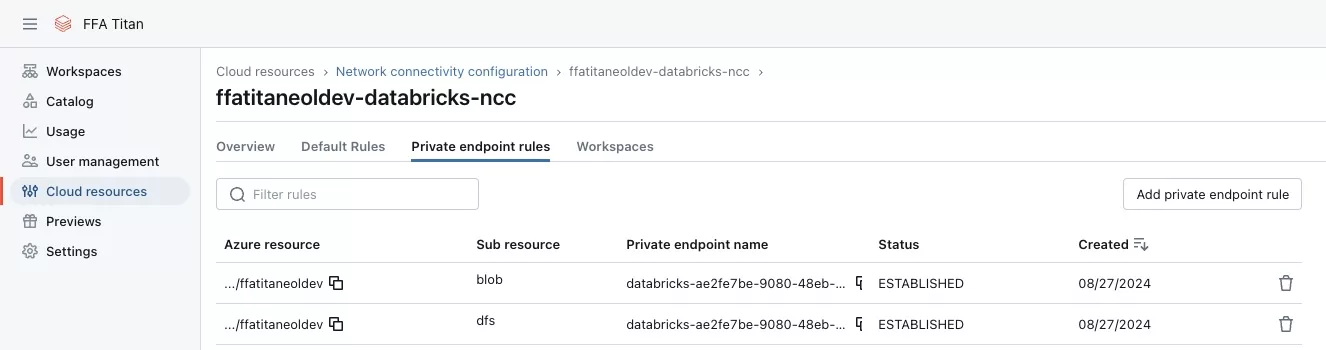

Databricks Network Connectivity Configuration created
Managed private endpoint rules established
External tables in Unity Catalog can be queried
FAQ
Practical answers about Databricks Network Connectivity Configuration, Serverless SQL private endpoints, Terraform automation and secure access to Azure Data Lake Gen2.
Databricks Network Connectivity Configuration, often shortened to Databricks NCC, is an account-level configuration used to manage private connectivity for serverless compute. In this setup, NCC is used to create private endpoint rules and bind secure serverless connectivity to the Databricks workspace.
The databricks_mws_network_connectivity_config resource creates the Databricks Network Connectivity Configuration in the Databricks account. This NCC becomes the container for private endpoint rules and is later associated with the Azure Databricks workspace.
The databricks_mws_ncc_private_endpoint_rule resource creates a managed private endpoint rule inside the Databricks NCC. In this blog, it is used twice, once for the blob endpoint and once for the dfs endpoint of the Azure Data Lake Gen2 storage account.
The databricks_mws_ncc_binding resource associates the Databricks Network Connectivity Configuration with a Databricks workspace. This makes the NCC private endpoint rules available to the workspace that runs Serverless SQL Compute.
Serverless SQL Compute runs in a Databricks-managed network, not directly inside the customer VNet. Managed private endpoints allow the serverless compute plane to privately connect to Azure resources such as Azure Data Lake Gen2 without exposing those resources to the public internet.
No. VNet Injection is used for classic compute workloads that run inside your own Azure VNet. Databricks Serverless SQL Compute runs in a Databricks-managed network, so private connectivity to your resources requires NCC and managed private endpoint rules.
You create a Databricks NCC, add private endpoint rules for the storage account subresources, usually blob and dfs, bind the NCC to the workspace, and approve the pending managed private endpoint connections on the Azure storage account.
Yes. The setup can be automated with the Databricks Terraform provider using databricks_mws_network_connectivity_config, databricks_mws_ncc_private_endpoint_rule and databricks_mws_ncc_binding. The private endpoint approval can be handled separately with Azure CLI or PowerShell.
For Azure Data Lake Gen2, you typically need private endpoint rules for both blob and dfs. The dfs endpoint is used for hierarchical namespace access, while blob access may still be required by parts of the storage interaction.
You need an Azure subscription, an Azure Databricks workspace with Serverless SQL Compute enabled, a storage account, Terraform, the azurerm and databricks providers, Azure CLI, PowerShell and permissions to create Databricks NCC resources and approve private endpoint connections.
You need Databricks account-level permissions to create and manage NCC resources, Azure RBAC permissions on the target Azure resources, and permission to approve private endpoint connections on the Azure Data Lake Gen2 storage account.
Serverless SQL is usage-based, charging per second, making it cost-effective for variable workloads. Classic Compute involves hourly pricing and may incur costs even when idle.
Yes, Serverless SQL can support cross-region networking using Azure's global VNet peering. This allows secure private traffic between regions. However, please consider additional costs.
